TURBO Type FP25 1'' Pulse Jet Valve for Dust Collector 24V220V

Name: TURBO Type FP25 1 Pulse Jet Valve for Dust Collector 24V220V
Brand: BRANDO
Price: 1 USD

China TURBO Type FP25 1'' Pulse Jet Valve for Dust Collector 24V220V wholesale

Brand Name : BRANDO

Model Number : FP25

Certification : None

Place of Origin : Ningbo, China

MOQ : 8pcs

Price : Negotiation

Payment Terms : PayPal, Western Union, T/T

Supply Ability : 50000pcs per month

Delivery Time : 4 to 7 working days

Packaging Details : Box, Carton, Pallet

Product Name : Pulse Valve

Port Size : 1''

Body Material : Aluminum

Diaphragm Material : NBR (Standard), FKM (Optional)

Operating Pressure : 0.5 to 7.5 bar

Voltage : 24VDC, 24VAC, 110VAC, 220VAC

Application : Dust Collector

Contact Now

TURBO Type FP25 1'' Pulse Jet Valve for Dust Collector 24V220V

Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. Pulse jet valves are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.

Technical Data:

Integral Pilot	FP20	FP25	FP40	FP55	FP65
Remote Pilot	FM20	FM25	FM40	FM55	FM65
Port Size	3/4''	1''	1-1/2''	2''	2-1/2''
Diaphragm Number	1		2
Pipe Connection	Threaded
Body Material	Diecast Aluminum
Diaphragm Material	NBR (Standard), FKM (Optional)
Working Pressure	0.5 to 7.5 bar
Voltage	24VDC, 24VAC, 110VAC, 220VAC

FP25 Dimension:

TURBO Type FP25 1'' Pulse Jet Valve for Dust Collector 24V220V

Related Products:


Coil	Armature	Diaphragm	Pulse Controller

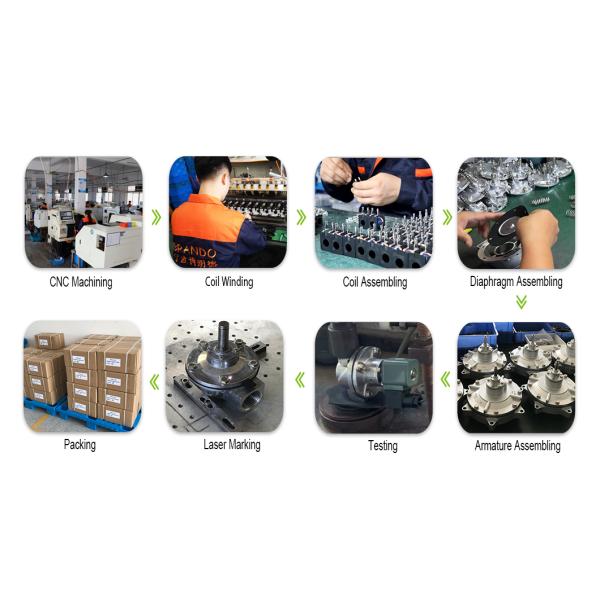

Production Show:

TURBO Type FP25 1'' Pulse Jet Valve for Dust Collector 24V220V

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
